IHC Suspension is excited to announce the most complete 2021-Present F150 2WD Single cab 3/5 lowering kit in the market. IHC Suspension coming from the service/installation side understood the challenges that other kits were not solving.
Our key features that differentiate us from the competition and save you money:
- FACTORY RIDE QUALITY
- Alignment! No notching frame pockets for camber correction.
- IHC’s control arm aligns to factory specs.
- Standard upper control arms for camber correction included (No additional parts needed like camber/caster bushing or offset ball joints to align)
- IHC’s control arms run polyurethane bushings for maximum performance, extended bushing life, and minimal maintenance.
- IHC’s flip kit has the correct pinion angle built in so no need to use pinion shims.
- MADE IN THE USA!
- Manufactured in TEXAS!
- Lifetime warranty on all metal parts!
IHC Suspension designed our 2021-Present F150 2WD Single cab 3/5 lowering kit with ride quality being the #1 goal. We achieved that by lowering the front end with custom control arms. You achieve the 3” front drop with the 4″ lower control arm and IHC spacer, keeping stock spring, shocks, and spindles where OEM ride quality comes from. Upper control arms are standard in our kit to get your camber back in specs. Most kits require customers to notch frame pockets which are more time consuming for installers and cost more in labor for the customer. Most times if notching is not done correctly lower control arms will constantly move and throw the alignment off. Not with IHC arms though. The rear is lowered with a 6” flip kit and 1″ lift shackles to achieve a 5″ rear drop. Nitrogen charged drop shocks are included.
INSTRUCTIONS
- Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. IHC Suspension is NOT responsible for any damage or failure resulting from improper installation
- Estimated Installation Time: 7 Hours +/- 1 hour (excluding alignment)
Front Installation Instructions (CLICK HERE)
Rear Installation Instructions (CLICK HERE)
FITMENT
Will fit 2021-Present F-150 2WD Single Cab
Will NOT fit long bed models
RECOMMENDED WHEEL/TIRE SIZE
- STOCKS
- 22’s – 285/45/22
- 24’s – 295/35/24
- Larger wheels recommend to check with local suspension shop

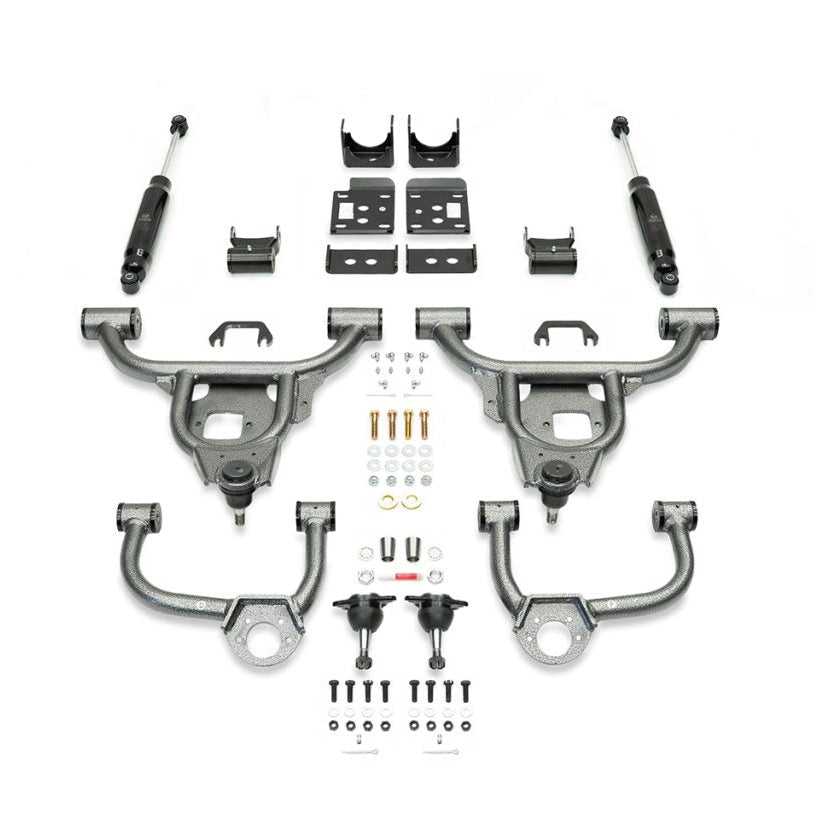

COMPONENTS
FRONT
- Upper/Lower control arms
- Spacers
- New ball Joints
- New polyurethane bushings
- Machined sleeve for lower control arm ball joints
REAR
- Flip kit
- Drop Shocks
- 1″ Lift Shackles
