APPLICATION:
For LS Swap Conversions
Fits LS1 LS2 LS3 LS6 L92 LQ4 LQ9 LM7 LR4 4.8L 5.3L 5.7L 6.0L 6.2L
DESCRIPTION:

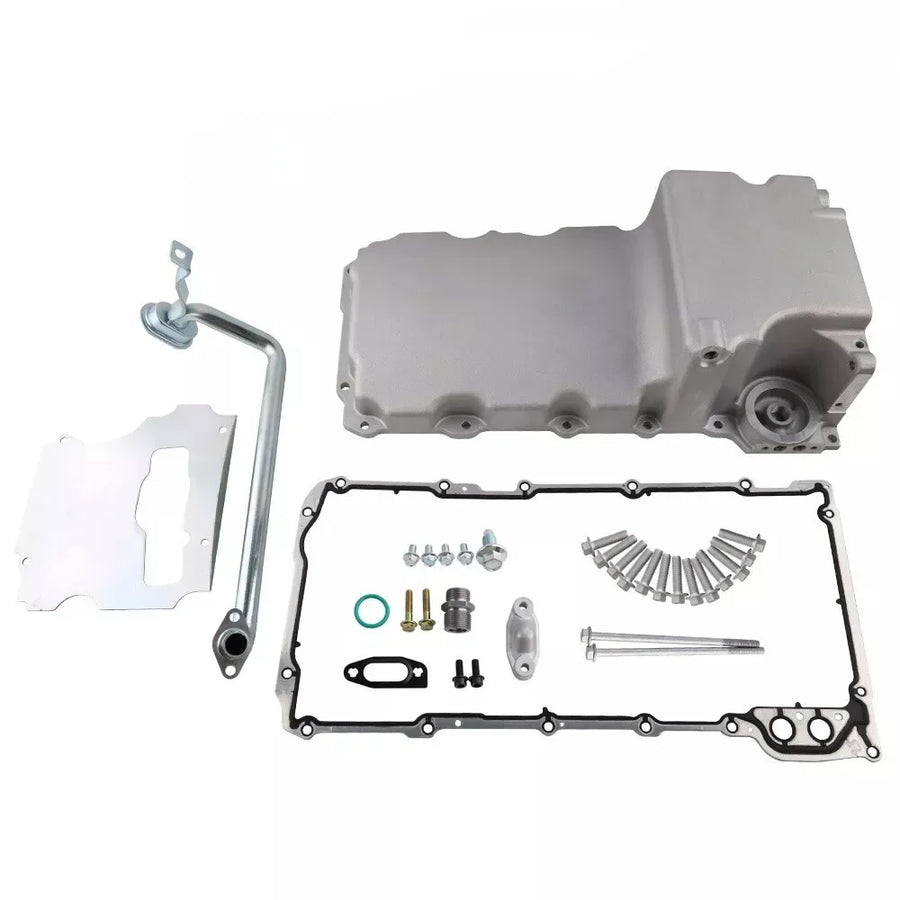

The Oil pans fit many GM rear-wheel drive applications that originally had either small or big block Chevrolet engines with a rear sump pan. These will work with any wet-sump oiling system GEN III/IV engine. These pans have a total of a 6.0 quart capacity, including filter. This pan will work with up to a 4.25 inch stroke crank.
FEATURES:
Sump Style: Wet
Stroker Clearance : Yes
Maximum Stroke with OE Rod: 4.250 in.
Sump Location: Rear
Oil Pan Material: Aluminum
Baffled: Yes
Pickup Included: Yes
Gaskets Included: Yes
Hardware Included: Yes
